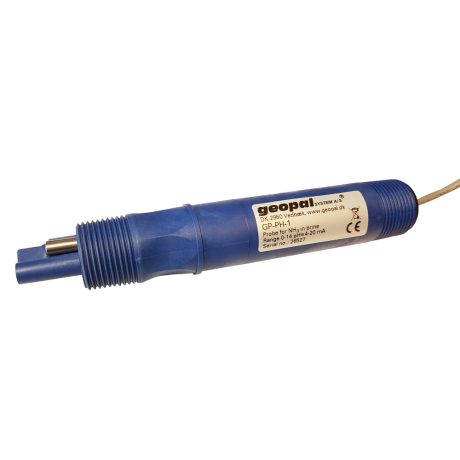

Geopal GP-PH-1 NH3/Brine Leakage Probe

Geopal GP-PH-1 is a NH3/Brine leakage probe.

Geopal GP-PH-1 is used to measure the pH value of brine in case of an ammonia leak in a heat exchanger. Brine has a pH value of 7, and even with small leaks, the pH increases to 9-10.

GP-PH-1 can be fed directly to a PLC or used with Geopal GJD-L3C monitor.

Quick delivery
Option for customized solutions
Approved and certified
Further information and support

Product inquiry Documentation

Product information

GP-PH-1 can be used in water, brine, ethylene etc.

Geopal GP-PH-1 probe offers superior performance under conditions that often forces conventional pH probes to fail.

GP-PH-1 can be connected directly to a PLC (2 wire 4-20 mA). The PLC must provide 24 VDC supply and be able to perform a calibration function (zero and span). Alternatively, the probe can be connected directly to Geopal alarm monitor GJD-L3C.

Support

A reliable gas detection system starts with a thorough assessment of your workplace environment. With years of experience identifying risk areas and designing tailored solutions, we can help determine whether this product is the right fit for your needs.

Whether you need this product as a standalone solution or as part of a larger system, we’ll make sure it’s aligned with your workplace’s specific requirements. We work closely with you to ensure the solution meets both safety standards and the unique challenges of your operations.

Learn more about how we can help you find the right solution here.

Related products

Geopal GJD-L3C Alarm Monitor

Common application areas

Refrigerating Systems

Common gases

Ammonia
