Product information and support
Features and Benefits:
- Wide measurement range — choose from multiple cell constants (10, 1, 0.1, 0.05, 0.02, or 0.01 cm⁻¹) for optimal accuracy at both low and high conductivities.
- Pressure and temperature resistant — up to 6.9 bar at 100 °C (Polypro) and up to 34.5 bar at 100 °C with stainless-steel fitting, enabling safe measurement in hot and high-pressure processes.
- Built-in temperature sensor (NTC 10 kΩ @ 25 °C) provides automatic temperature compensation for stable readings across a wide range.
Specifications:

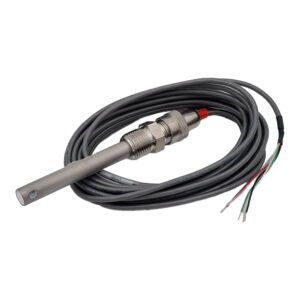

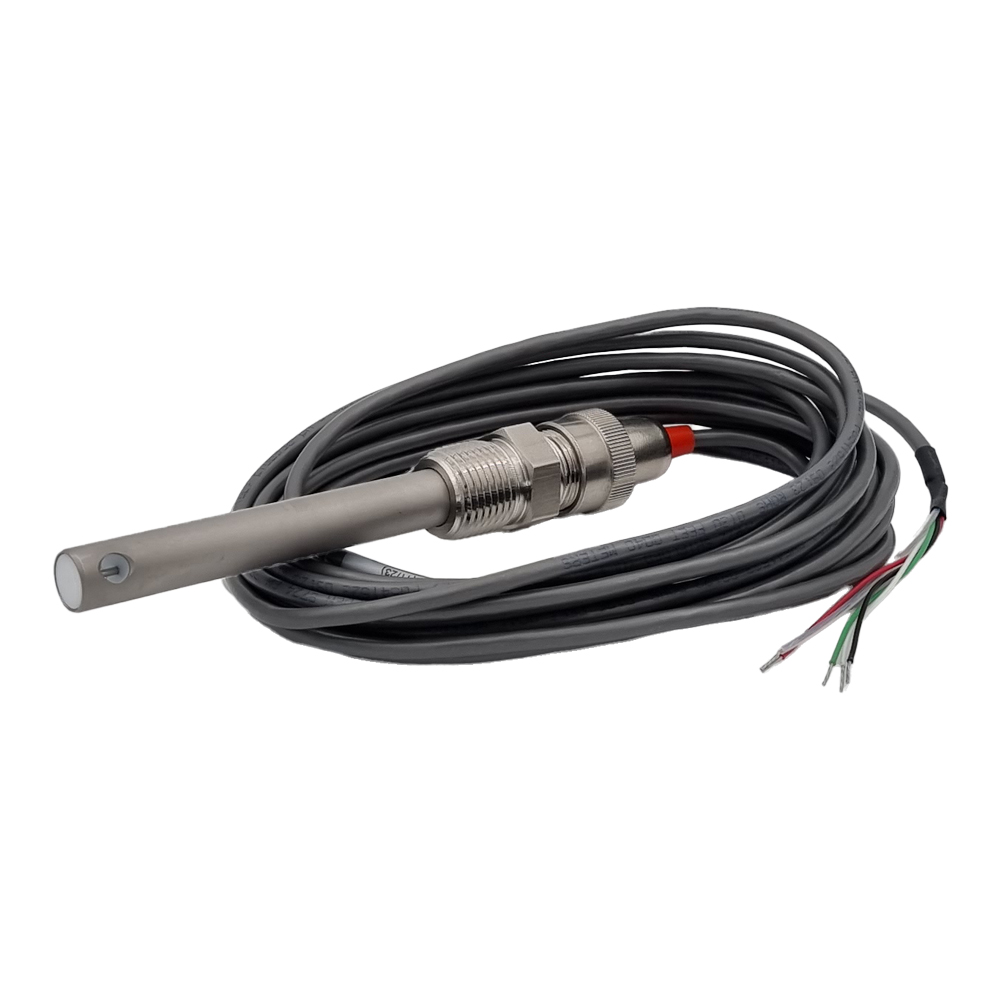

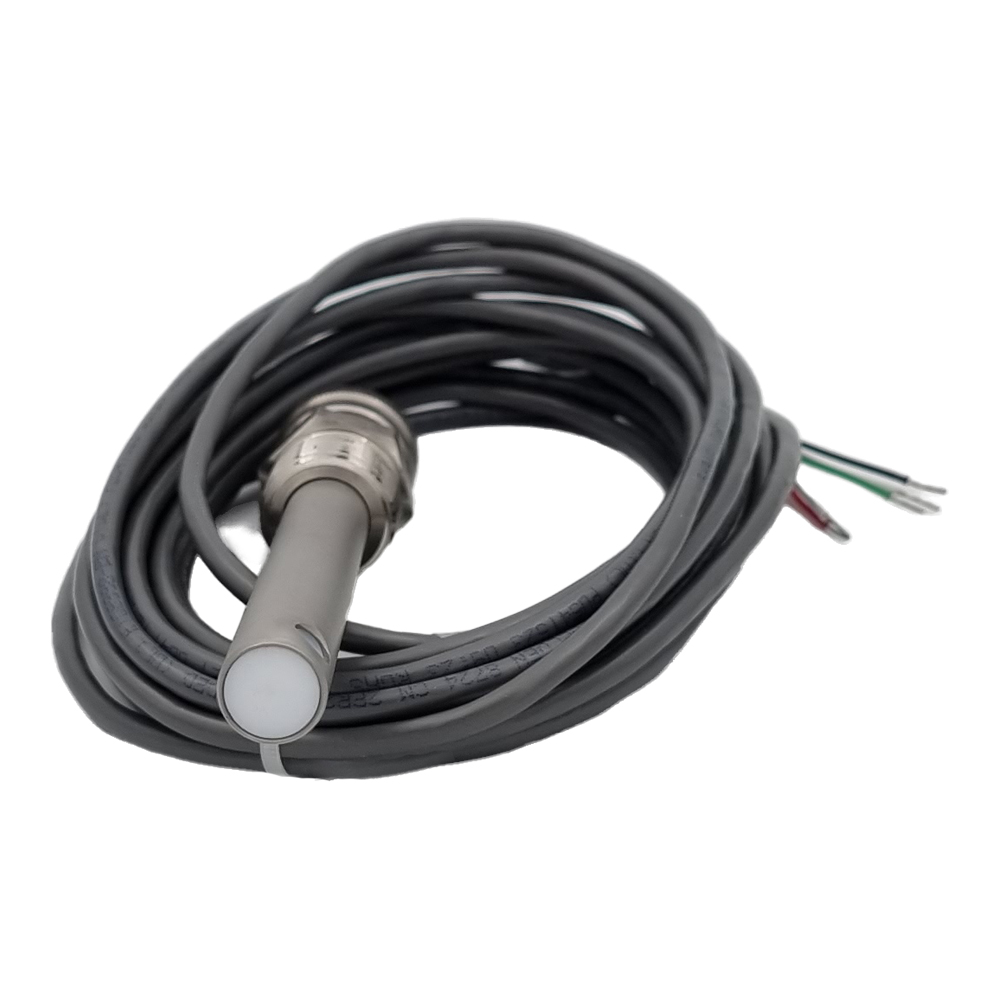

- Process connection: 1/2" NPT (Polypro; option 316 SS or Kynar)
- Cable: 5 m, 24 AWG, stripped and tinned
- Max. pressure / temp.: 34.5 bar @ 100 °C (Polypro) · 10.3 bar @ 120 °C (Kynar) · 34.5 bar @ 100 °C (316 SS)
- Cell constants: 10, 1, 0.1, 0.05, 0.02, 0.01 cm⁻¹ (model CS10)
- Temperature comp. element: 10 kΩ NTC @ 25 °C (options Pt100, Pt1000, Ni100, etc.)
- Wetted materials: Insulator — Teflon · Electrodes — 316 SS (Monel, Titanium, Hastelloy optional) · O-ring — EPR
- Electrical connection: 5-wire (white: outer electrode, black: inner, clear: shield, red/green: temp.)
With a single probe you get the flexibility to handle both ultra-clean and heavily loaded liquids without compromising accuracy. The compact 1/2" NPT connection fits directly into standard process piping, and the 5 m pre-terminated cable makes installation quick — no soldering or special connectors. Chemically resistant materials (Teflon insulator, 316 SS electrodes, and EPR O-ring) deliver long service life and minimize maintenance, even in aggressive media. Meanwhile, built-in temperature compensation prevents errors when process temperature fluctuates, reducing the need for frequent recalibration over time.
The probe helps you optimize process control by providing reliable, temperature-compensated conductivity data — whether dosing cleaning chemicals, monitoring salinity in rinse water, or controlling ion-exchange systems. Its high pressure and temperature tolerance means fewer probe replacements and less downtime in demanding operating environments, while the chemical-resistant design extends lifetime and lowers total cost of ownership.
In short: a robust, precise, and installation-friendly solution that keeps your processes firmly under control.
