Features and Benefits:
- Accurate conductivity measurement for everything from ultra-pure water to process liquids (0–999.9 mS/cm) with auto-range.
- Two configurable relay outputs (5 A @ 250 V AC) for alarms, dosing, or drain control.
- Isolated 0/4–20 mA output (750 Ω) to PLC, SCADA, or data logger.
- Two digital inputs — e.g., flow or level switch — that can automatically place the system offline.
- Large backlit 240 × 128 LCD with Danish menu and quick access to calibration.
- MicroSD slot for easy firmware updates and settings backup.
- Rugged, flame-retardant PC/ABS enclosure, IP66; 175 × 150 × 119 mm; weight < 0.8 kg.
Specifications:
- Power supply: 90–265 V AC, 9 W (suits 230 V)
- Enclosure / IP: UL94-V0 PC/ABS, IP66
- Relays: 2 × SPST NO, 5 A @ 250 V AC
- Analog output: 0/4–20 mA, isolated to 2 kV, 750 Ω max
- Digital inputs: 2 × volt-free contacts (NO/NC)
- Measuring range: 0–99.99 µS/cm … 0–999.9 mS/cm (auto-range)
- Display: 3 ¾" 240 × 128 px LCD, backlit
- Dimensions / weight: 175 × 150 × 119 mm · 0.8 kg

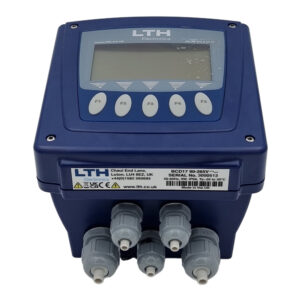

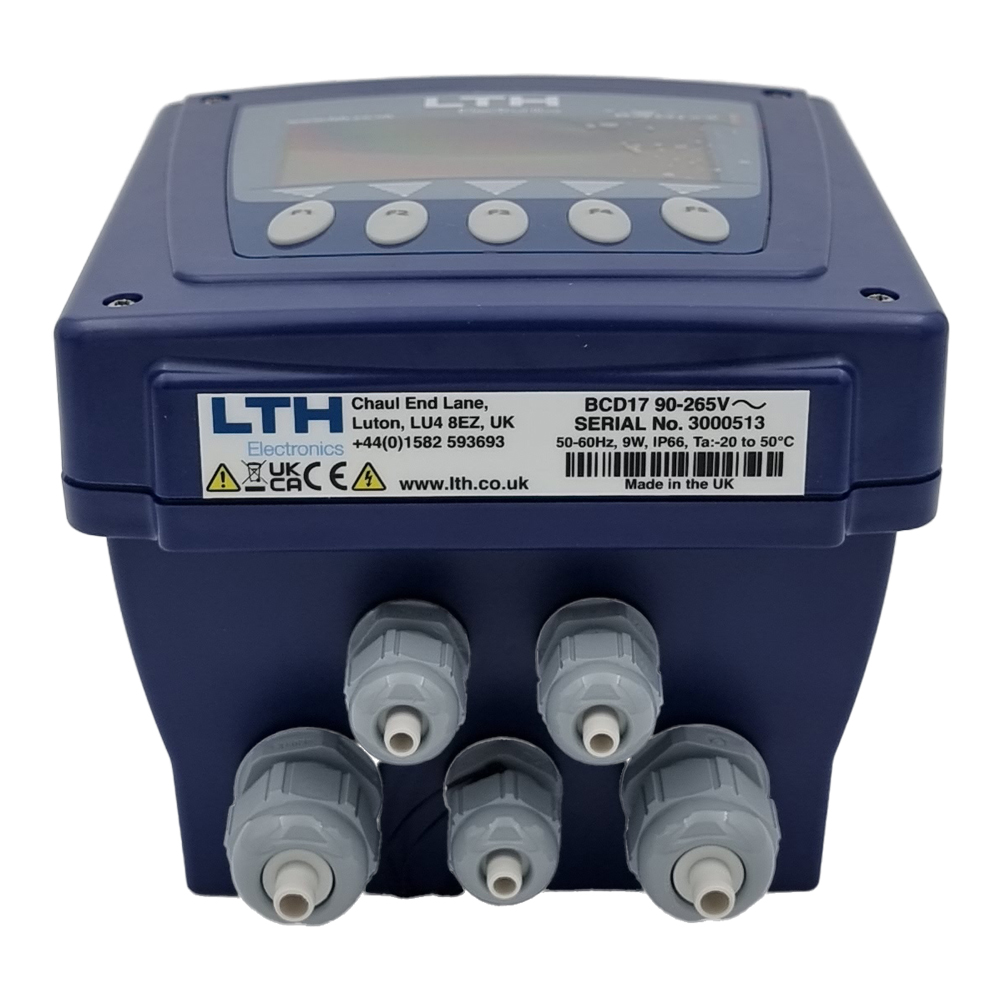

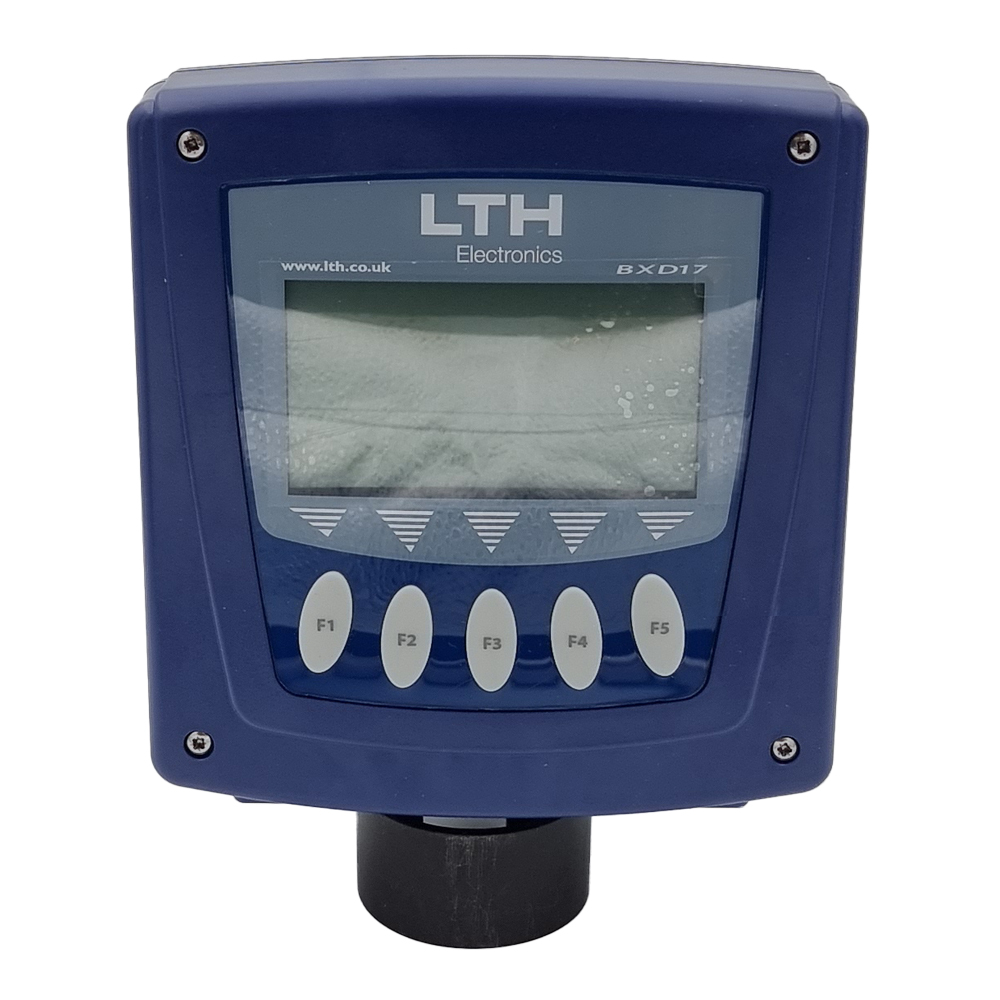

The control box gives you an all-in-one solution that monitors, regulates, and communicates your conductivity data without extra interface modules or additional enclosures. Its high IP66 rating and wide operating range make it ideal for humid, dusty, or wash-down environments, while the two flexible relays can be configured for exactly the alarm or control logic you need — reducing both CAPEX and OPEX as well as the risk of costly downtime.
The controller turns raw sensor values into actionable signals so you can run CIP processes, monitor cooling towers, or ensure correct salinity in food and pharma production with no manual intervention. The two relays can, for example, open a valve, start a pump, or simply trigger a beacon, while the 4–20 mA output provides continuous documentation for your quality system. If a fault occurs, the unit can be set offline via a single contact input, and all alarms are logged automatically — minimizing risk and simplifying traceability for audits.
