Features and Benefits:
- Dual alarm: Synchronized strobe (1 Hz) and sound pressure up to approx. 100 dB @ 1 m ensure the alarm is never missed.
- 32 preset tone types and 3 volume levels – choose the tone that suits the environment.
- Light and sound can run together or independently (ideal for testing or pre-alarm scenarios).
- Fast push-&-twist mounting with cable entry from the side or rear – saves time on site.
Specifications:
- Operating voltage: 10–28 V DC (nom. 24 V)
- Flash rate: 1 flash per second
- Current consumption (strobe): 90 mA @ 12 V / 40 mA @ 24 V
- Sound pressure: Up to ~100 dB @ 1 m (tone-dependent)
- Tones: 32 selectable; synchronized start-up
- Volume: 3 levels, up to 20 dB attenuation
- Connection: 8-pole screw terminal (0.28–2.5 mm²)
- Ingress protection: IP45 / IP66 (depending on base)

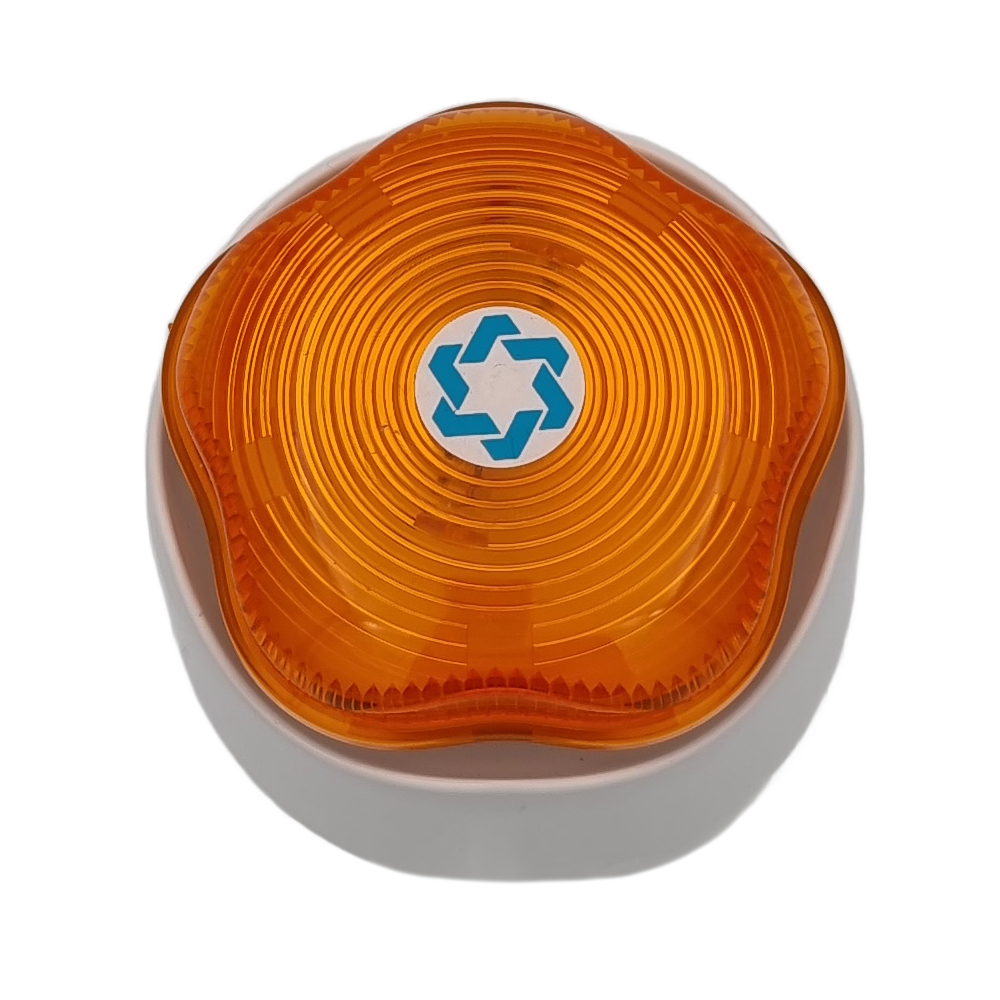

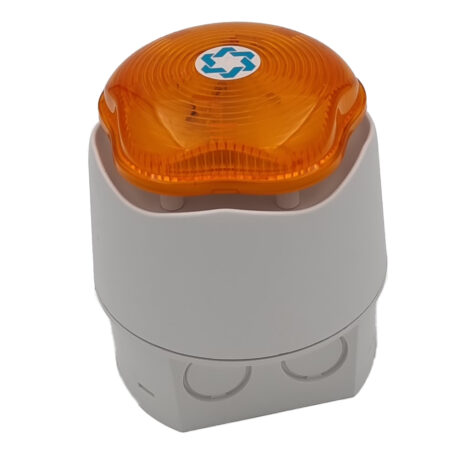

With the Combo Beacon/Sounder 10–28 V, you get a compact alarm device that combines a powerful xenon strobe with a sound pressure of about 100 dB at one meter, so critical events are both seen and heard, even in noisy or dusty environments. The wide operating voltage range of 9–30 V DC makes it easy to integrate into both new and existing systems, and the low power consumption of just 40 mA at 24 V barely loads the supply, allowing multiple units to run on the same circuit. A flame-retardant ABS housing and ingress protection ratings of IP45/IP66 protect against dust, moisture, and harsh conditions, and a temperature tolerance from −15 °C to +40 °C ensures reliable operation year-round.
When reaction time must be short, the combined light/sound alarm provides a clear and unmistakable signal, enabling personnel to act immediately without relying on a single sense. The unit can run strobe and horn together or separately, making it flexible for testing, pre-alarm, or other tailored alarm strategies.
The intuitive push-and-twist mounting and cable entries from both the side and rear make installation and servicing quick and simple, reducing downtime. At the same time, the low power consumption lowers demands on power capacity, and the robust, tightly sealed design minimizes maintenance needs. The result is a solution that protects people, supports statutory risk reduction, and keeps production running with fewer interruptions.
A reliable gas detection system starts with a thorough assessment of your workplace environment. With years of experience identifying risk areas and designing tailored solutions, we can help determine whether this product is the right fit for your needs.
Whether you need this product as a standalone solution or as part of a larger system, we’ll make sure it’s aligned with your workplace’s specific requirements. We work closely with you to ensure the solution meets both safety standards and the unique challenges of your operations.
Learn more about how we can help you find the right solution here.
